Description
Aluminum 3D-Core panels and aluminum - plastic panels are both three - dimensional composite panels. The key difference lies in that the middle core layer of aluminum 3D-Core panels is made of aluminum cones, while that of aluminum - plastic panels is plastic. This makes aluminum 3D-Core panels more fire - resistant and environmentally friendly.
With A2 - level fire protection, these panels offer top - tier fire safety. The aluminum cone core plays a vital role here. While aluminum - plastic panels with plastic cores pose a fire risk, the aluminum cones in these panels are highly heat - resistant. In high - risk areas like kitchens or industrial buildings, the fire - resistant properties of Aluminum 3D - Core panels can be a lifesaver.
Functionally, they integrate the best features of other common curtain - wall panels. They are lightweight like aluminum - plastic panels, which simplifies installation and reduces the load on the building structure. They possess high strength similar to aluminum single panels, ensuring durability. The thermal insulation properties are on par with aluminum honeycomb panels, contributing to energy efficiency. And they can replicate the aesthetic appeal of stone, offering an elegant look. By avoiding the limitations of these materials, such as the lack of fire - resistance in aluminum - plastic panels and the high cost and weight of stone, Aluminum 3D - Core panels are a practical and cost - effective choice for a wide range of projects.
Key Features
Thermal Expansion Management
The unique structure of aluminum 3D-Core panels enables stress - free thermal expansion and contraction. This ensures long - term stability, preventing damage caused by extreme temperature changes and enhancing the lifespan of architectural installations.
Chemical - Resistant Build
Designed to withstand harsh chemicals, these panels resist corrosion from acids, bases, and solvents. Their durability makes them a reliable choice for chemical plants, laboratories, and other demanding environments.
Plentiful Decorative Details
In the realm of surface treatment processes, beyond the typical plain colors, metallic wires, wood - grain and stone - grain simulations, and iridescent effects, special procedures can yield decorative details like embossed motifs, frosted textures, and brushed finishes, adding layers and a three - dimensional aesthetic. This enriches the artistic value of architectural adornment.
Antibacterial Performance
Specialized coatings inhibit the growth of bacteria, mold, and fungi. This makes the panels ideal for healthcare, food service, and public spaces, where hygiene is paramount.
| Category | Dimensions & Options |
| Conventional Sizes | - Two standard formats: 1220×2440mm and 1220×3000mm |
| Thickness Specifications | - Core thickness varies between 3mm and 8mm
- Non - standard thicknesses are subject to customization |
| Extended Capabilities | - Maximum width: 1600mm
- Maximum length: 6000mm
- Custom - made sizes accommodate unique architectural needs |
For flat - pasting self - adhesive three - dimensional panels:
Installation Preparation: First, ensure the target wall is flat and clean. Draw horizontal and vertical lines for accurate positioning. Prepare adhesives like universal glue, glass glue, etc., along with tools such as wallpaper knives.
Panel Preparation (Optional): If coloring is needed, spray - paint the panels flat. Apply thin and even coats.
Panel Pasting: For non - permanent pasting, use foam double - sided tape. For permanent pasting, use silicon structural glue or nail - free glue, with foam double - sided tape for positioning.

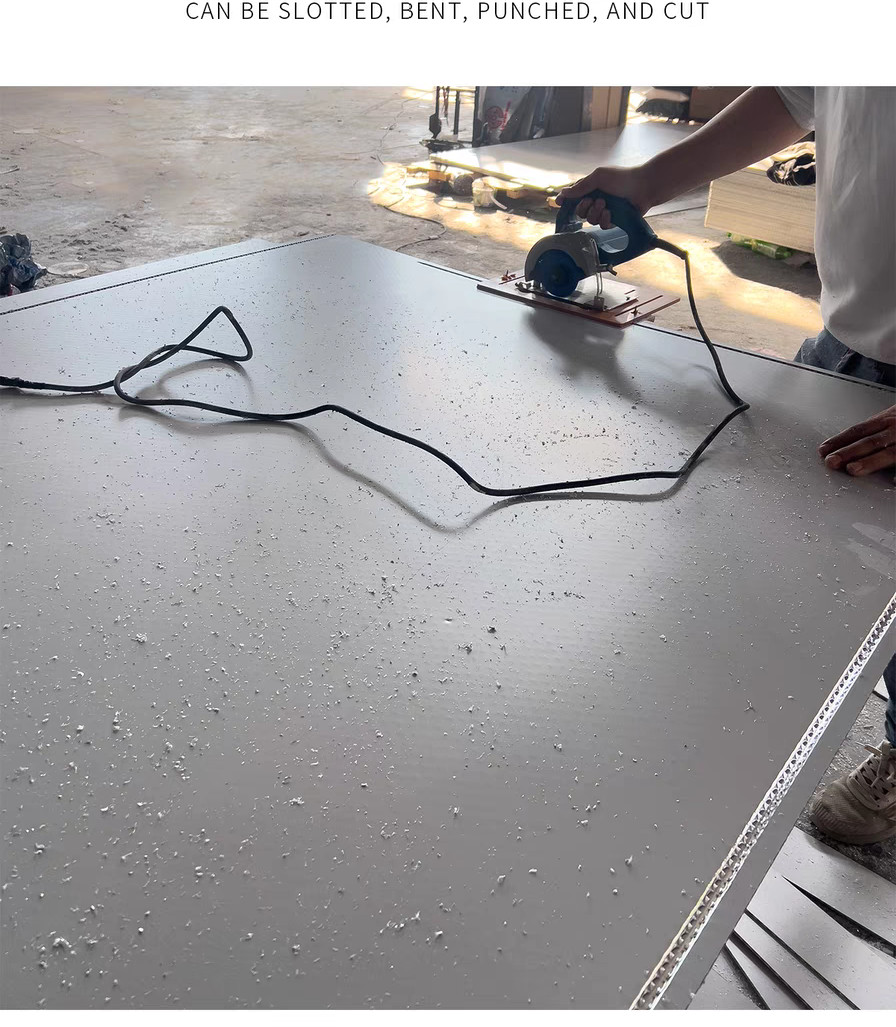

Panel Cutting (if necessary): Mark the cutting line with a pencil and use a hook knife or wallpaper knife to cut, then smooth the edges.
For triangular keel slot three - dimensional panels:
Installation Preparation: Keep the wall flat. Prepare self - tapping screws, tools like screwdrivers, and triangular keels.
Panel Preparation: Similar to the previous type.
Keel Installation: Measure and fix the keels on the wall with self - tapping screws.
Panel Installation: Insert the three - dimensional panels into the keels row by row, adjusting for flatness.
Scope of Applications
Aluminum cone - core panels have a wide - ranging application scope. They are predominantly used in architectural projects, including curtain walls, roofing systems, and the refurbishment of existing buildings. Inside buildings, they are employed for wall paneling, ceiling installations, and decorative partitions, enhancing the overall ambiance. Beyond construction, they are integrated into the interior decoration of ships, railway carriages, and elevators, improving the aesthetic and comfort levels. They also play a significant role in furniture production, contributing to the creation of sturdy and stylish pieces.
For building exteriors, these panels create a high - end appearance, making buildings stand out with a modern and luxurious look. Indoors, they are perfect for wall, ceiling, and partition decorations, meeting the requirements for both beauty and easy cleaning. In public facilities, they offer durable and low - maintenance solutions, ensuring long - term functionality and reducing upkeep costs. Their versatility makes them a preferred choice across various industries.
